DONGGUAN DAXIAN INSTRUMENT EQUIPMENT CO.,LTD
Dongguan Daxian Instrument Equipment Co.,Ltd. CHINA'S LEADER IN TESTING EQUIPMENT Professional Manufacturer of Building Materials 13 years Fire Retardant / Wire/ Plastics/ Rubber/ Environmental
Add to Cart
| item | ASTMD149 Tester |
| Warranty | 1 YEAR |
| Customized support | OEM, ODM, OBM, Software reengineering |
| Place of Origin | China |
| | Guangdong |
| Brand Name | DAXIAN |
| Model Number | DX8388 |
| Power | Electronic |
| External dimensions | L 1400 * W 1040 * H 1500 mm |
| Electrode weight | 200KG |
| Input voltage | AC220V 50 / 60Hz |
| Electrical capacity | 10 KVA |
| Current control accuracy | ≤ 2% |

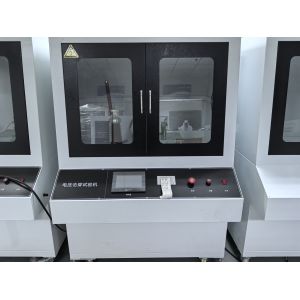

The dielectric strength tester is suitable for testing the breakdown strength and withstand voltage time of solid insulating materials such as plastics, films, resins, mica, ceramics, glass, insulating paint and other media under power frequency voltage.
Applicable to continuous uniform boost or step up boost, apply AC / DC voltage to the sample until breakdown, measure the breakdown voltage value, calculate the breakdown strength of the sample; use the rapid boost method to put the voltage Raise to the specified value, and the sample will not breakdown for a certain period of time. The specified value is the value of the withstand voltage of the sample.
Testing apparatus for IEC60243-2,ASTM D149 .
